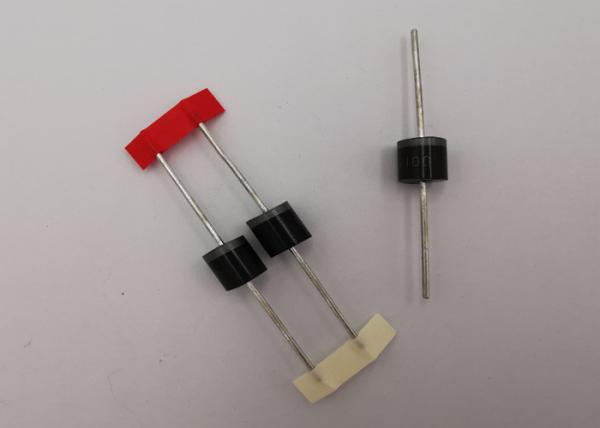

20SQ045 Mini 20 Amp 45 Volt Schottky Diode Rectifiers

Name: 20SQ045 Mini 20 Amp 45 Volt Schottky Diode Rectifiers
Brand: XUYANG
Price: 1 USD

20SQ045 Mini 20 Amp 45 Volt Schottky Diode Rectifiers Manufactures

Brand Name : XUYANG

Model Number : 20SQ045

Certification : ISO9001/RoHS

Place of Origin : China

MOQ : 500PCS

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 100000pcs per 1 week

Delivery Time : 15 - 20 work days

Packaging Details : tape in box, 500pcs/box

Name : Schottky Diode

Part number : 20SQ045

IF : 20A

Voltage : 45V

Package : R-6

Junction Temperature : -55-200°C

Contact Now

20Amp 45Volt Schottky Rectifier Diode 20SQ045 With R-6 Package

FEATURES

* High surge Forward current capability
* Low Power loss, High efficiency
* IF(AV)20.0A
* VRRM 45V

Applications

Photovoltaic Solar cell Protection

Schottky Rectifier

Limiting Values(Absolute Maximum Rating)

Item	Symbol	Unit	Conditions	20SQ045
Repetitive Peak Reverse Voltage	VRRM	V		45
Average Rectified Output Current	Io	A	60HZ sine wave, R- load, Ta=25℃	20
Surge(Non-repetitive)Forward Current	IFSM	A	60HZ sine wave, 1 cycle, Ta=25℃	350
Current Squared Time	I2t	A2s	1ms≤t＜8.3ms Tj=25℃	511
Storage Temperature	Tstg	℃		-55 ~ +150
Junction Temperature	Tj	℃	IN DC Forward Mode-Forward Operations,without reverse bias, t ≤1h①	-55 ~ +200

Electrical Characteristics(Ta=25℃ Unless otherwise specified)

Item	Symbol	Unit	Test Condition		Max
Peak Forward Voltage	VFM	V	IFM=20.0A		0.55
Peak Reverse Current	IRRM1	mA	VRM =VRRM	Ta=25℃	0.5
Peak Reverse Current	IRRM2		VRM =VRRM	T =100℃	50
Thermal Resistance(Typical)	RθJ-c RθJ-l RθJ-a	℃/W			2.2 20 45

NOTE
①Meets the requirements of IEC 61215 Ed. 2 bypass diode thermal test.

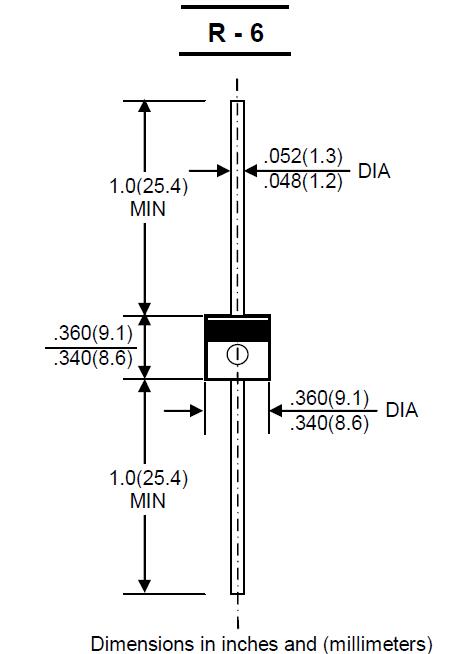

Drawing:
