10MQ100N SMD Schottky Barrier Diode With 100V 2.1A DO214AC Case
With strong R&D capabilities,advanced production equipment and perfect measurement devices.
We supply qualified products and service in accordance with ISO9001 quality management system.
All products have passed hazardous substance test,met standards of EU and USA.
Features
The 10MQ100N surface mount Schottky rectifier has been designed for applications requiring low
forward drop and very small foot prints on PC boards. Typical applications are in disk drives,
switching power supplies, converters, free-wheeling diodes, battery charging, and reverse battery
protection.
1. Small foot print, surface mountable
2. Low forward voltage drop
3. High frequency operation
4. Guard ring for enhanced ruggedness and long term reliability
Major Ratings and Characteristics
| Characteristics | 10MQ100N | Units |
| I F DC | 2.1 | A |
| VRRM | 100 | V |
| IFSM @ tp = 5 μs sine | 120 | A |
| VF @ 1.5Apk, TJ=125°C | 0.68 | V |
| TJ range | - 55 to 150 | °C |
Voltage Ratings
| Part number | 10MQ100N |
| VR Max. DC Reverse Voltage (V) | 100 |
| VRWM Max. Working Peak Reverse Voltage (V) |
Absolute Maximum Ratings
Size:
Payment
1. We accept PayPal, Western Union, T.T in advance and so on.
2. If you prefer other pay ways , pls contact us.
Shipping
1. The items normally will be shipped out within 10 working days after the payment confirmed.
2. It will be shipped by DHL/FedEx /TNT/ UPS /EMS or other special way. Please contact with us and
chose the best one.
Product Tags:
|
|

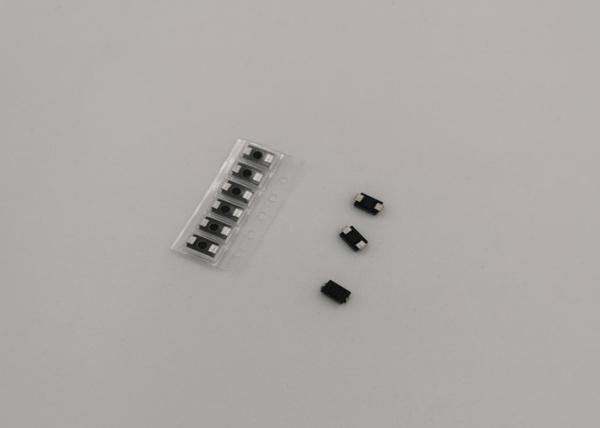

10MQ100N SMD Schottky Barrier Diode For Reverse Battery Protection Images
|
